>> 45,000DWT ATB Launching

Luanching ‘Guo Yu Hai Bo’ by Evergreen Air-bags



CN-08032806

1.

Project Name

: Launching of ‘Guo Yu Hai Bo’

2.

Date and Time

: March 28, 2008

3.

4.

Place

: Yangzhou, China

Shipyard Name

: Yizheng Guoyu Shipyard

5.

Country

: China

6.

Ship Name

: ‘Guo Yu Hai Bo No.2’

7.

Ship Type

: ATB

8.

Main Parameter of Ship





Total Length

: 204 m



Total width

: 33 m



Depth

: 15.2 m



DWT

: 45, 000 DWT



Lightweight

: 8,100 tons + 3,000 tons = 11,100 tons

9.

Specification of Air-bags

: D 1.0m x EL 16m YT-6 1260D Type

10.

Quantity

: 80 nos

Note :



This is the biggest launching projects by airbags in the world.

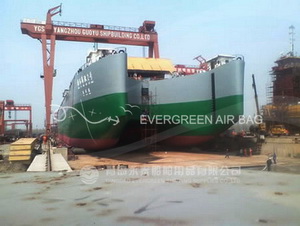

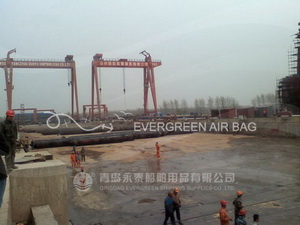

  Prepare to Launch After Launching
